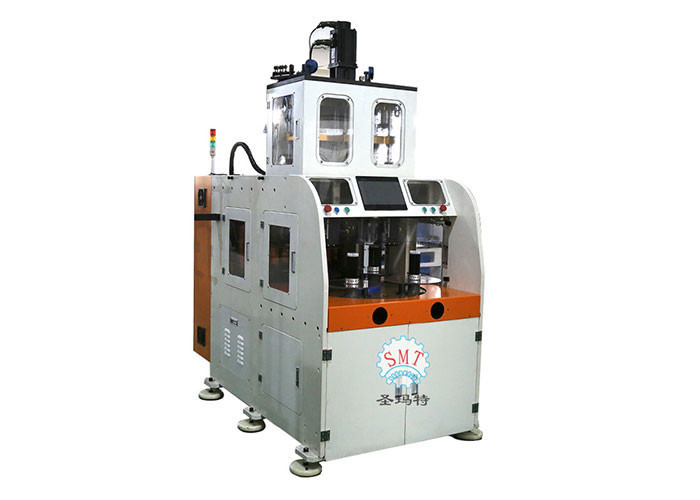

380V 7Kw Full-Automatic Stator Winding Machine with 12 Months Warranty for High Efficiency Washing Machine Manufacturing
خلاصه محصول
2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head This machine features two winding heads with four working stations, capable of simultaneously winding main and auxiliary phases. Designed for high production capacity applications, it ...
ویژگی های سفارشی محصول
نام:
دستگاه سیم پیچ الکتریکی برای استاتور
سرعت سیم:
≤3000r/دقیقه
شماره انتقال:
2-6 عدد
منبع تغذیه:
380V/50/60Hz 7kW
وضعیت:
جدید
ضمانت:
12 ماه
سر سیم پیچ:
1 عدد
حداکثر ارتفاع پشته:
70 میلی متر
زندگی قالب:
بیش از 1000000 شات
درجه اتوماتیک:
تمام توان
برجسته کردن:
380V Stator Winding Machine,7Kw Automatic Stator Winding Machine,12 Months Warranty Electrical Winding Machine
,7Kw Automatic Stator Winding Machine
,12 Months Warranty Electrical Winding Machine
خواص اساسی
محل منبع:
چین
نام تجاری:
SMT
گواهی:
ISO9001/SGS/CE
شماره مدل:
SMT-SLR150
املاک تجاری
مقدار حداقل تعداد سفارش:
1 ست
قیمت:
قابل مذاکره
جزئیات بسته بندی:
کیف چوبی مناسب برای حمل و نقل دریایی.
زمان تحویل:
80 - 100 روز برای 1Set
شرایط پرداخت:
T/T ، L/C
قابلیت ارائه:
2pcs/ 56 - 80 روز
توضیحات محصول
2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head
This machine features two winding heads with four working stations, capable of simultaneously winding main and auxiliary phases. Designed for high production capacity applications, it achieves high slot filling rates and is particularly suitable for stators with small slot openings. Operation modes including auto skip, auto cutting, and auto indexing can be selected via the touch screen interface.
Main Technical Data
| Model | SMT-LR100 | SMT-LR150I | SMT-LR150 II | SMT_LR200 | SLR70 | QLR70 |
|---|---|---|---|---|---|---|
| Winding Head | 1 | 1 | 1 | 1 | 2 | 4 |
| Wire Diameter(mm) | 0.3~1.0 | 0.3~1.0 | 0.3~1.2 | 0.3~1.2 | 0.2~1.0 | 0.2~1.0 |
| Unload Speed | ≤2500r/min | ≤2500r/min | ≤2500r/min | ≤2000r/min | 3000 | 3000 |
| Stack Height | ≤80mm | ≤120mm | ≤150mm | ≤230mm | ≤70mm | ≤70mm |
| Winding Precision | + 0 | + 0 | + 0 | + 0 | + 0 | + 0 |
| Power Supply | 380v/50/60HZ 8Kw | 8Kw | 9Kw | 7Kw | 7Kw | 7Kw |
| Air Pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa | ≥0.6pa | ≥0.6pa |
| Weight | ≈1350Kg | ≈1600Kg | ≈1600Kg | ≈2200Kg | ≈1950Kg | ≈2300Kg |
| Dimension (L×W×Hcm) | 180×110×200 | 180×120×220 | 180×130×230 | 220×180×250 | 180×130×205 | 135×100×180 |
Key Features
- Double winding heads with turntable design for efficient operation
- Servo-controlled main spindle with ±1 turn accuracy
- PLC-controlled parameters including turn number, winding speed, and tension
- Supports both continuous and discontinuous winding methods
- Capable of handling 2, 4, and 6 pole coils
- Tooling change can be completed in approximately 15 minutes
- Automatic wire detection with machine stop function
- Low vibration and noise operation
- Touch screen interface for easy operation and monitoring
Applications
This automatic stator winding machine is ideal for manufacturing single-phase induction motors and three-phase motors. It is widely used in household appliance production including washing machines, fans, refrigerators, air conditioners, vacuum cleaners, and various personal care appliances.
Maintenance Guidelines
- Conduct pre-operation checks of mechanical, electrical, and hydraulic components
- Clean dust and reset machine after each use
- Clean electrical components every three months
- Regularly check and maintain hydraulic system filters and lubricators
- Inspect guide mechanism lubrication status
- Check magnet valve screws and pipe joints quarterly
- Inspect filters and air filters every two months
- Annual air pressure check recommended
- Regular mechanical oil application required
